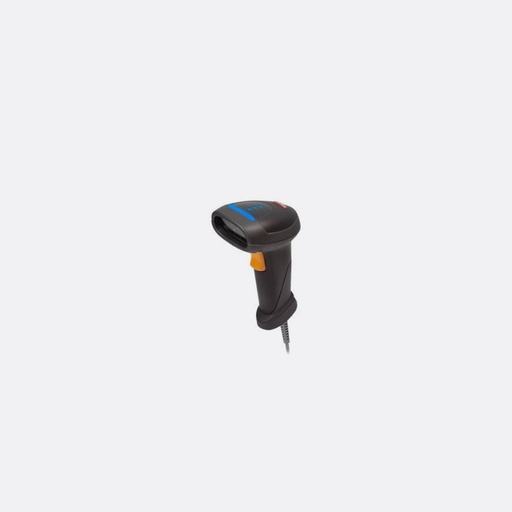

Zebex Z-3392-Plus 2D Barcode Scanner
Z-3392 Plus features all-around capabilities comparable to top line product on the market. It includes a few key refinements from the previous model with barcode stitching capability, flexible application, better 1D and 2D scanning performance, and the all-important durable design for tough working conditions. It is a scanner with great value and is ideal for use in the retail industry.
- Ergonomic, rugged design
- Decode most 1D & 2D barcodes
- LED indication and programmable beeper
- Affordable high performance
Zebex Z-3392-Plus 2D Barcode Scanner
Z-3392 is the newly designed, rugged, gun-type 2D image readers built for tough environments. The affordable and versatile scanner offers toughness to general applications with great performance. The premier 2D image reader is perfect for retail, warehousing, and asset management. The great value of this scanner makes your buying decision easier than ever.
Key Features
- Ergonomic, rugged design
- Decode most 1D & 2D barcodes
- Flashing LED indication and programmable beeper
- Affordable high performance
| Brand | Zebex |
| Product Name | Zebex Z-3392-Plus 2D Barcode Scanner |
| Model | Z-3392-Plus |
| Country of Origin | Taiwan |
| System Interface | RS-232, USB |
| Two-Color LED | Blue & Red |
| Input Voltage | 5 VDC ±10% |
| Operating Current | Operating Current115mA typical (avg.) |
| Drop Durability | Designed to withstand 1.5M drops |
| 1D Barcode | 1D BarcodeUPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japannese ), Code 11, Telepen, Pharmacode, C |
| Minimum Bar Width | 4mil@PCS=90%, (code39) |
| Humidity | 5% – 90% RH (non-condensing) |
| Operating Temperature | 0°C – 50°C (32°F – 122°F |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Light Level | Max. 100,000 Lux (fluorescence) |
| Light Source | Aiming Element : 617nm visible LED, Illumination Element : 6500K white LED |
| Depth of Field | Code39 (5 mil) : 50 - 150 mm, EAN 13 (13 mil) : 30 - 280 mm |
| Scan Rate | Over 75,000 scans at 1 scan per second per full charge |
| Print Contrast | 30% @ UPC/EAN 100% |
| Beeper Operation | Programmable Operation : Programmable tone & beep time |
| EMC | CE EN55022 class B, FCC part 15 Class B,VCCI,BSMI and Safety : IEC 62471 Exempt |
| Optical System | 1280H × 720V pixels, 38.6°Horizontal x 24.9°Vertical, 1280H × 720V pixels, (1.0M) |
